Copper Material Chart and Our Common Size List
1) Up to ASTM / BS EN / DIN / JIS H standard and so on.
2) Material designation: T2 / C11000 / C102 and TP2 / C12200 / C106 etc.
| Grade | USA | U.K | Germany | Japan |
| China BG | ASTM | BS | DIN | JIS H |
| T 2 | C11000 | C101 / C102 | >E-Cu58 | C1100 |
| TP 2 | C12200 | – | – | C1220 |
| – | C10200 | – | – | – |
| – | C14500 | – | – | – |
| – | C10100 | – | – | – |
| – | C15000 | – | – | – |
| – | C17200 | – | – | – |
| – | C17510 | – | – | – |
| – | C18000 | – | – | – |
| – | C18150 | – | – | – |
| – | C18200 | – | – |
3) Tubes temper: All tempers are available
4) Dimensions: OD: 4-350mm, WT: 0.5-50mm, or according to the buyers requirements, and also length and tolerance subject to the buyer’s decisions
5) Tubes in good straightness, with clean surface of both inside and outside
6) With pre-shipment inspection if needed, chemical report, mill test if asked, marked tensile strength, yield strength, elongation rate etc.
7) Typical use of copper pipe and tube: Copper pipe and tube is widely used in Thermal Solutions, liquid cooling systems, Water tubes, condenser, evaporator, and heat exchanger tubes; air conditioning and refrigeration, gas, heater, and oil burner lines; plumbing pipe and steam tubes; brewery and distillery tubes; gasoline, hydraulic, and oil lines; rotating bands etc.

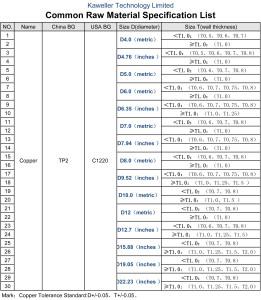

Here, enclosed size list of copper which common usely for reference:
